Digital Panel Meters with Diverse Input/Output Options

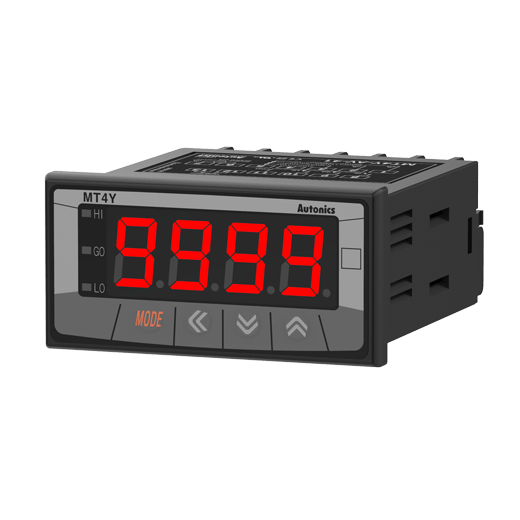

The MT4Y/MT4W series compact digital panel meters are available in various input and output options, allowing flexible application in diverse environments. The units can display measured values between -1999 and 9999, and features various user-friendly functions including high/low-limit display scale, AC frequency measurement, zero-point adjustment, and PV transmission output scale function. The MT4Y series meters are DIN W 96 x H 48 mm and the MT4W series meters are DIN W 72 x H 36 mm in size.
- Various input/output options (by model)
- – Input options : DC voltage, DC current, AC voltage, AC current
- – Output options : RS485 communication output, low speed serial output, BCD dynamic output, transmission output (DC 4-20mA), NPN/PNP open collector output, relay contact output (default option : indicator/no output)
- Maximum allowed input : 500VDC, DC 5A, 500VAC, AC 5A
- Display range : -1999 to 9999
- High/low-limit display scale function
- AC frequency measurement (range : 0.1 to 9999Hz)
- Various functions : peak display value monitoring, display cycle delay, zero-point adjustment, peak display value correction, PV transmission output (DC 4-20mA) scale, etc.
- Power supply : 12-24VDC, 100-240VAC
- MT4Y : DIN W96×H48mm
- MT4W : DIN W72×H36mm
