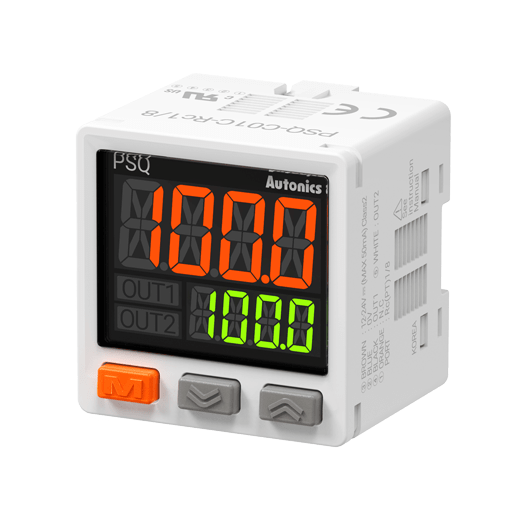

PSQ Series
Dual Digital Display Pressure Sensors
The PSQ series dual digital display pressure sensors can simultaneously display PV and SV for easier status readings. The 12-segment LCD display is capable of displaying various alphanumeric characters for clear identification, and the main (PV) display can be displayed in 3 different colors depending on status or configuration. Installation and configuration of multiple sensors is made easy with the copy parameter settings function and users can switch between NPN and PNP open collector output options through parameter configuration settings.
Main features
※Additional pressure port thread sizes have been added to the lineup.
– Pneumatic type: R1/8, NPT1/8
– Fluid type: R1/4, NPT1/4, 9/16-18UNF, Rc1/8
- Pressure measurement of any gas, liquid or oil [fluid type]
except substances which may corrode stainless steel 316L
- Dual display for simultaneous display of process value (PV) and setpoint value (SV)
- Secondary (SV) display : setpoint value, pressure unit, or display-OFF
- Switch between NPN and PNP open collector output via parameter configuration
- 3-color main (PV) display (RUN mode : green/red, parameter setting mode : orange)
- 12-segment LCD display capable of diverse alphanumeric characters
- Measurement range : -100.0 to 100.0 kPa /-100 to 1000 kPa (Pneumatic type : compound pressure, Fluid type : sealed gauge pressure)
- Analog output : voltage (1-5VDC), current (DC 4-20mA)
- Copy parameter settings function
- External input : Auto-Shift, Remote, Hold (PSQ-□C□□U-□ models only)
- Forced output control mode for device testing and inspection
- Display resolution : 0.1kPa /1kPa (by model)
- One-touch connector type for easy wiring and maintenance
- Password lock for parameter configuration settings
Wide Measurement Range
Easy Operation with Dual Display
3-Color Main Display (PV)
12-Segment Display
Analog Output
1:1 Copy Settings Function
Output Selection
Simultaneously Display Process Value (PV) and Setpoint Value (SV)
The compact sized (30mm×30mm) pressure sensors feature a dual display screen capable of simultaneously displaying process value (PV) and setpoint value (SV)
Switch Between NPN and PNP Open Collector Outputs With Parameter Settings
Users can easily switch between NPN open collector output and PNP open collector output by simply selecting the desired output option in parameter settings.
3-Color main (PV) Display
The PSQ series features a 3-color main display for clear status identification (RUN mode : green/red, parameter setting mode : orange).
Users can choose between four color modes for the PV display. (R Mode, G Mode, R-ON Mode, G-ON Mode). The main display will always be displayed in orange during parameter configuration or while copying parameter settings.
12-Segment LCD Display
The 12-segment display is capable of displaying alphanumeric characters offering better legibility
Compound Pressure Measurement (Pneumatic Type) Including Negative and Standard Pressure/Sealed Gauge Pressure Measurement (Fluid Type)
The sensors offer a wide compound pressure measurement range of – 100.0 to 100.0 kPa for measurement of negative or positive pressure with a single unit. The fluid type models are capable of measuring sealed gauge pressure.
Copy Parameter Settings Function
The parameter settings from the master unit can be copied directly to a slave unit, reducing time for configuration when multiple sensors with identical settings are required. (master and slave unit must be identical models.)
Supports 8 Types of Pressure Unit
The sensors support 8 types of pressure units including MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, and mmH₂O
One-Touch Connector Wiring
The one-touch, push-to connect wiring allows easier connection and maintence.
Applications
-
Rubber Extrusion / Plastic Injection Molding Process(Video)
Rubber Extrusion / Plastic Injection Molding Process(Video)
-
Automated Automotive Manufacturing Process (Video)
Automated Automotive Manufacturing Process – Stamping process / Welding process / Painting process
-
Confirm Reference Pressure in Pipes
Dual display pressure sensors are used to check and confirm reference pressure in pipes of packaging lines.
-
Semiconductor Parts Manufacturing
Dual display pressure sensors used to detect suction status semiconductor parts during semiconductor manufacturing process.
-
Container Transport Conveyors
Dual display pressure sensors are used for air-leak test of PET bottles during packaging material manufacturing.
