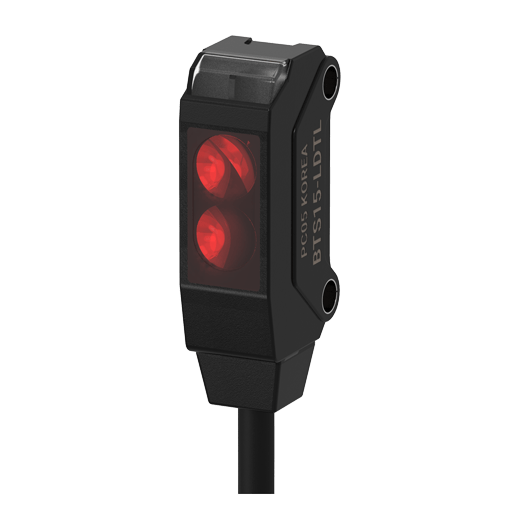

Ultra-Compact, Slim Type Photoelectric Sensors

The BTS series ultra-compact, slim type photoelectric sensors are ideal for installation in limited spaces and compact applications. The sensors measure just 7.2 mm wide, come equipped with built-in amplifiers and are capable of detecting tiny objects including metallic wires and semiconductor chips. The BTS Series is also built with IP67 protection structure and stainless steel mounting brackets, providing durable and reliable sensing solutions in diverse environments.

Main features

  • Ultra-slim width of only 7.2 mm
    • – W 7.2 x H 18.6 x L 9.5 mm (through-beam type)
    • – W 7.2 x H 24.6 x L 10.8 mm (retroreflective type, convergent reflective type)
  • Detection methods and minimum target size
    • – Through-beam type (BTS1M): Ø2 mm
    • – Retroreflective type (BTS200): Ø2 mm (at distance 100 mm)
    • – Convergent reflective type (BTS15/BTS30): Ø0.15 mm (at distance 10 mm)
  • Detecting distance may vary by environmental factors
  • Maximum detection distance: 1 m (through-beam type)
  • Stability indicator (green LED) and operation indicator (red LED)
  • Stainless steel 304 mounting brackets
  • IP67 protection structure (IEC standard)
  • 초소형 사이즈

    Ultra-slim Size

  • 1M 최대 검출 거리

    Max. Distance

  • 미소 물체 검출

    Detect Tiny Targets

  • IP67

    Protection Rating

  • Ultra-Slim Size

    The ultra-compact sensors measure just 7.2mm wide, making them ideal for installation in limited spaces or small machinery.

    초소형 사이즈 실현
  • Detect Tiny Targets as Small as Ø0.15mm

    The sensors can detect tiny targets as small as Ø0.15mm, including metallic wires, semiconductor chips, thin thermocouples, and more.

    Ø0.15mm의 미소 물체 검출 가능
  • Maximum Detextion Distance of 1M

    The compact sensors are capable of detectiong items at distances up to 1 m. (through-beam type)

    최대 1m 검출 거리 실현
  • Check Operation Status

    The sensors are equipped with stability indicators (green LED) and operation indicators (red LED)

  • Visible Detection Spot

    Visible red light source allows users to easily check sensing spots for installation.

    검출 지점 확인 가능
  • IP67 Protection Structure

    IP67 protection structure allows the units to be safely applied in environments with dust or water.

    IP67의 보호구조 실현
