Description

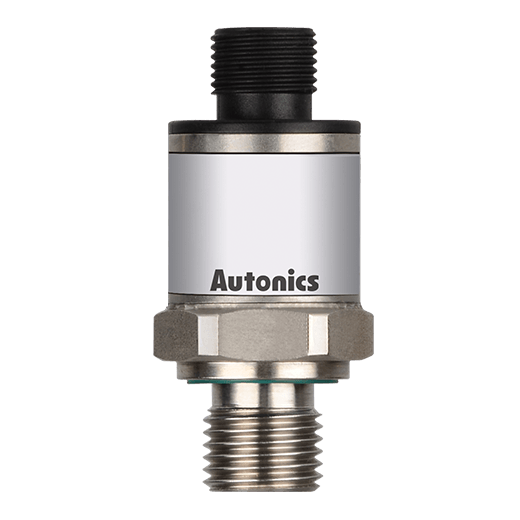

TPS30 Series
Stainless Steel Pressure Transmitters
Main features
- Robust build allows high or low pressure measurement in high and low temperature environments
- – High pressure (0 to 60MPa/0 to 600bar), low pressure (0 to 2MPa/0 to 20bar)
Sealed gauge pressure (-0.1 to 2MPa/-1 to 20bar), absolute pressure (0 to 2MPa/0 to 20bar), gauge pressure (0 to 60MPa/0 to 600bar) - – Temperature range (-40˚ to 125℃) (may vary by model)
- – High pressure (0 to 60MPa/0 to 600bar), low pressure (0 to 2MPa/0 to 20bar)
- Applicable in diverse settings including packaging machines, heavy machinery, factories, and shipbuilding
- Pressure measurement of any gas, liquid, or oil
- 316L stainless steel body for high corrosion resistance (except head component of head types)
- Compact size allows easy installation in tight or limited spaces
- 1 ms high-speed response rate
- Analog output : current (DC 4-20mA), voltage (1-5VDC)
- Built-in reverse polarity protection circuit
- Various connector types : cable type, DIN43650-A connector type, DT04-3P connector type, M12 connector type, head type
- Available thread sizes : G3/8, G1/4, R1/2
- IP67 protection structure (IEC standard)
- (DIN43650-A connector type : IP65)
High and Low PressureMeasurement
High CorrosionResistance
Compact Size
VariousConnector Types
Robust Build
Protection Rating(DIN43650-AConnector type:IP65)
High or Low Pressure Measurement in High or Low Temperature Environments
The robust build allows measurement of high pressure (0 to 60MPa /0 to 600bar) and low pressure (0 to 2MPa /0 to 20bar) in temperature conditions ranging from -40˚ to 125℃.
Compact Size, Ideal for Tight Spaces or Small Machinery
The compact Ø21mm cylindrical design makes it ideal for installation in tight spaces or small machinery.
Analog Outputs
The series is available in DC 4-20mA current output (2-wire) and 1-5VDC voltage output (3-wire) types.
Various Connector Types Available
The transmitters are available in 5 different connector types, including cable type, DIN4365-A connector type, DT04-3P connector type, M12 connector type and head type.
IP67 Protection Structure
IP67 protection means that the units can be safely applied in environments with dust or water (DIN43650-A connector type : IP65)
Applications
Measurement of charging pressure in high pressure gas valves
