Description
E60H(Sine Wave) Series

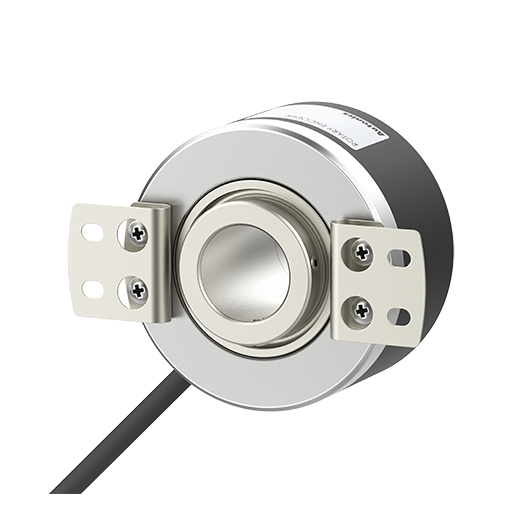

60 mm Incremental Rotary Encoders (Sine Wave, Hollow Shaft Type)
The E60H series sine wave incremental rotary encoders transmit analog sine wave operational amplifier (op-amp) output for speed regulation and position control. C, D output phase signals can be used to calculate absolute position and A, B output phase signals can be multiplied to offer high precision position control comparable to over 10,000 pulses.
Main features
- Ø60 mm housing, Ø20 mm hollow shaft
- Analog sine wave operational amplifier (op-amp) output
- Power Supply: 5 VDC ±5%
60 mm Diameter Housing
Incremental Type
Sine Wave Output
High Resolution
Operating Temperature
Absolute Position Control and Multiplication Setup Available
The encoders offer up to 2,048 pulses and users can set up multiplication values for A, B output phase signals for high precision position control comparable to over 10,000 pulses. C, D output phase signals can be used to calculate absolute position.
Wide Operating Temperature Range
The encoders offer stable operation in extreme high or low temperatures -20°C to 100°C (compared to previous models: -10°C to 70°C)
Axial/Radial Cable Types Available
The encoders are available in axial or radial cable types in 7 m, 9 m, and 15 m cable lengths, allowing flexible application in diverse environment settings.
