DS/DA Series


Intelligent Type Digital Display Units

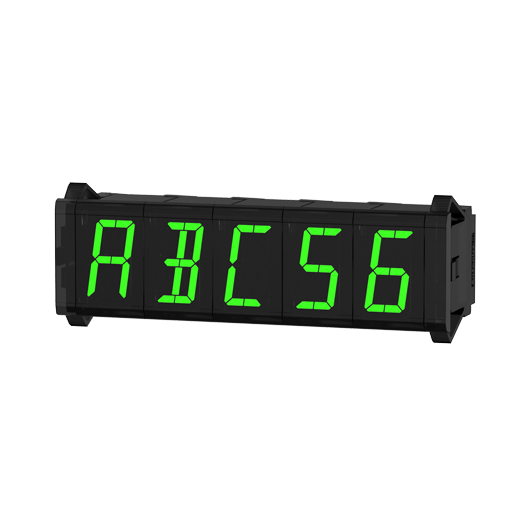

The DS/DA series Intelligent type display units are available in 6 input options, including serial input, parallel input, RS485 communication input, RS485 communication time sync display, PT temperature sensor input, and PT temperature sensor + RS485 communication input. The DS/DA series is expandable up to 24 units with simple multi-stage connection, and switchable unit plates are available to provide installation flexibility for users. The displays are available in 7-segment, 16-segment types and green, red LED types and diverse combinations are possible.

Main features

* New line-up : RS485 communication time sync display models (DS◻-◻C)
* Added feature : master mode for RS485 communication input models (D◻◻-◻T)

  • Simple wiring without soldering
    • – Multi-stage connection using expansion connectors or ribbon cables
    • – Power supply and data wiring required on base unit only
  • Various input options
    • – Serial input
    • – Parallel input
    • – RS485 communication input
    • – RS485 communication time sync display
    • – PT temperature sensor input
    • – PT temperature sensor+RS485 communication input
  • Expandable up to 24 units with multi-stage connection (patent) *
  • Available in various sizes : 16mm, 22.5mm, 40mm, 60mm
  • Available in 7-segment display and 16-segment display types
  • Available in red display and green display types
  • High luminance LED display
  • Various unit display plates (switchable) with flashing or ON/OFF options
  • Display 64 unique characters (0 to 9, A to Z, 27 symbols, period)
