D1SC-N Series


Large 7-Segment Digital Display Units

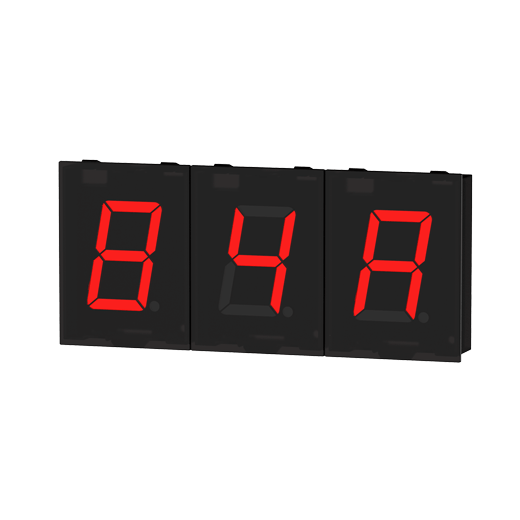

The D1SC-N 7-segment digital display units are large (W 32 x H 57 mm) LED displays with options for decimal (0 to 9) and hexadecimal (0 to 9, A to F) characters. Input logic can be alternated between positive (PNP) and negative (NPN) using a simple jumper switch. The displays accept both parallel and serial data input and are highly compatible with various PCs, PLCs, and other control devices.

Main features

  • Display characters : decimal (0 to 9), hexadecimal (0 to 9, A to F)
  • Input logic : positive (PNP), negative (NPN)
  • Data input method : parallel, serial
  • Input signal voltage : high (4.5-24VDC), low (0-1.2VDC)
  • 7-segment LED display (red)
  • Zero blanking function
  • Power supply : 12-24 VDC
