Description

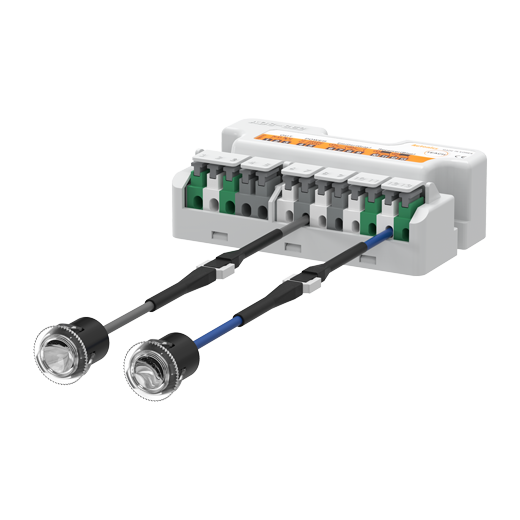

ADS-SE1/2 Series
Automatic Door Side Sensors
The ADS-SE1/2 series automatic door side sensors are through-beam type sensor system with a dedicated controller. The sensors feature long sensing distances up to 10 m and provides stable detection even in high ambient lighting, up to 100,000 lux. Connection between sensor and controller is made easy with push-to-connect wiring and one-touch automatic sensitivity adjustment function is included for convenient set up.
Main features
- Long sensing distance : 0 to 10m
- Ambient lighting : up to 100,000lux
- Easy connection between sensor head and controller
- Simple sensitivity adjustment (one-touch automatic sensitivity adjustment)
- Self-diagnosis function
- Compact size : W77×H44×D24mm
