Description
Overview

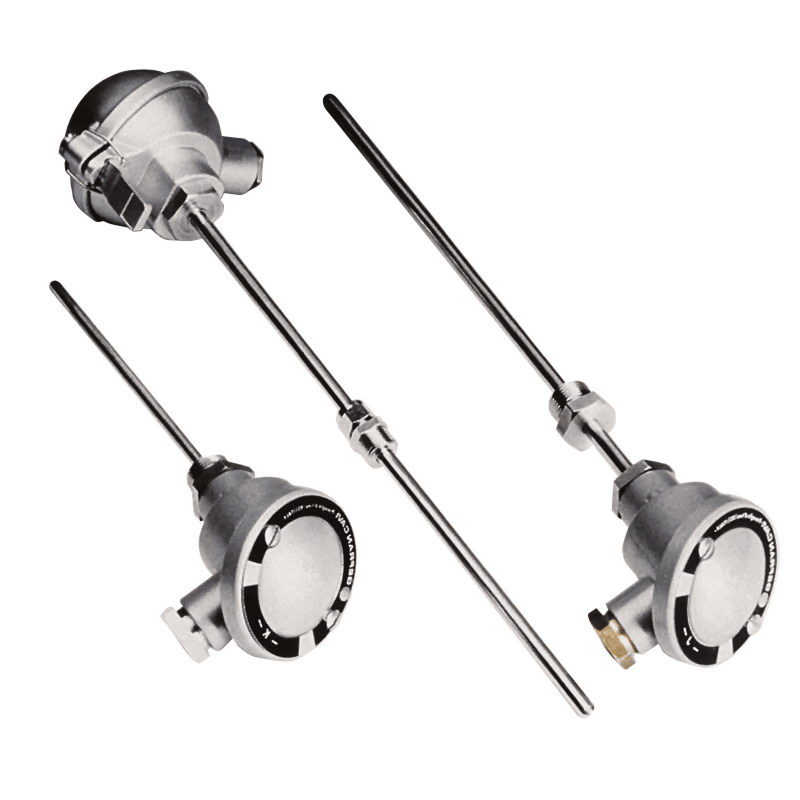

MgO amplified output – General purpose
Description
- Amplified output signal o Temperature limits:
-40 … +350°C for type T
-40 … +750°C for type J
-40 … +900°C for type E
-40 … +1000°C for type K (see table for sheath diameters) - Tolerance:
IEC 584.2 STANDARD class 1:
or type T:
± 0,5° C (- 40 … + 125° C)
± 0.004 [t] (t > + 125° C)
or type J, E, K:
± 1.5° C (- 40 … + 375° C)
± 0.004 [t] (t > + 375° C) - Mineral insulated (MgO) thermocouple element and continuous metal sheath
- Application versatility
