I/O Terminal Block Cables

Categories: , ,

Description

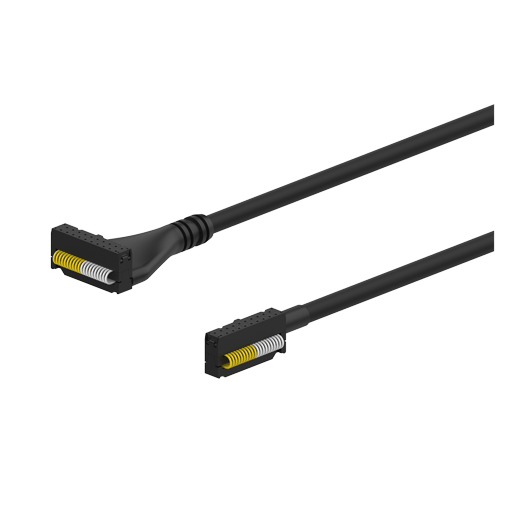

The CH/CO series I/O Terminal Block Cables are compatible with PLCs and controllers from various brands (Autonics, LSIS, Mitsubishi, etc). The CH/CO series cables are available in various configurations by connector type, connector direction, number of pins, cable length, and more, allowing application in diverse working environments.

Main features

  • Diverse cables available for connection to various PLCs and controllers
  • Customizable cable arrangement
  • Diverse cable lengths for various user requirements
  • Customizable branching cable types
  • Diverse Connectors

  • Customizable Cable Arrangement

  • Diverse Cable Lengths

  • Branching Cable Type Available

  • Customizable Cable Arrangement

    The cable arrangement can be customized to support connection to various PLC and servo I/O devices.

    ※ For detailed information, refer to “Cable Selection and Connection Table” from the cable catalog.

    맞춤형 배선 배열 제공

Various Connector and Cable Types Available

Various connector and cable types including open cable type and branching cable type are available for diverse user applications.

  • CO Series (Open Cable Type)


    PLC Connector Model Appearance
    Hirose 20Pin Plug CO20-HP■-□
    MDR 20Pin Plug CO20-MP■-□
    MDR 26Pin Plug CO26-MP■-□
    MDR 26Pin Plug CO26-MQ■-□
    D-SUB 37Pin Plug CO37-DP■-□
    D-SUB 37Pin Socket CO37-DS■-□
    Hirose 40Pin Plug CO40-HP■-□
    Fujitsu 40Pin Plug CO40-FP■-□
    Hirose 50Pin Plug CO50-HP■-□
    MDR 50Pin Plug CO50-MP■-□
  • CH Series (Single Branch Cable Type)


    PLC Connector Terminal Block Connector Model Appearance
    Hirose 20Pin Plug Hirose 20Pin Plug CH20-HP■-□
    MDR 20Pin Plug Hirose 20Pin Plug CH20-MP■-□
    MDR 26Pin Plug Hirose 26Pin Plug CH26-MP■-□
    MDR 26Pin Plug Hirose 26Pin Plug CH26-MQ■-□
    D-SUB 37Pin Plug Hirose 40Pin Plug CH37-DP■-□
    D-SUB 37Pin Socket Hirose 40Pin Plug CH37-DS■-□
    Hirose 40Pin Plug Hirose 40Pin Plug CH40-HP■-□
    Fujitsu 40Pin Plug Hirose 40Pin Plug CH40-FP■-□
    MDR 50Pin Plug Hirose 50Pin Plug CH50-MP■-□
    MDR 50Pin Plug Hirose 50Pin Plug CH50-MQ■-□
  • CH Series (Double Branch Cable Type)


    PLC Connector Terminal Block Connector Model Appearance
    Hirose 40Pin Plug Hirose 20Pin Plug CH40-HP■-□-2S
    CH40-HP■-□-2L
    Fujitsu 40Pin Plug Hirose 20Pin Plug CH40-FP■-□-2S
    CH40-FP■-□-2L
    D-SUB 37Pin Plug Hirose 20Pin Plug CH40-DP■-□-2S
    CH40-DP■-□-2L
    D-SUB 37Pin Socket Hirose 20Pin Plug CH40-DS■-□-2S
    CH40-DS■-□-2L
    Hirose 20Pin Plug Hirose 40Pin Plug CH40-HP■-□-YS
    CH40-HP■-□-FS
