ASL Series

Description

Solid State Relay Terminal Blocks (Screwless Type)

The ASL series solid state relay terminal blocks allow users to easily switch between NPN common and PNP common inputs using a jumper bar. Users can also change between independent and common output options using jumper bars. The screwless push-in type connection offers easy wiring and stable connection.

Main features

※ NEW 16-pin type model has been added to the lineup (ASL-H16□□-□□)



[Common Features]

  • Switch between independent and load common output with jumper bar
  • Easy wiring and stable connection with screwless push-in connection
  • Operation status indicator (blue LED)

[1-Pin Type]

  • Power common input using jumper bar
  • DIN rail mount method
  • Supported SSR : [Panasonic] AQZ202D, AQG12124, AQG22124
    : [Omron] 3GMC-202P
    : [Fujitsu] SN-24A01C

[4-Pin Type]

  • Switch between NPN and PNP input using jumper bar (patent) *
  • Solid state relay protection cover
  • Convenient solid state relay removal with removal lever
  • DIN rail mount method
  • Supported SSR : [Panasonic] AQZ202D, AQG12124
    : [Fujitsu] SN-24A01C

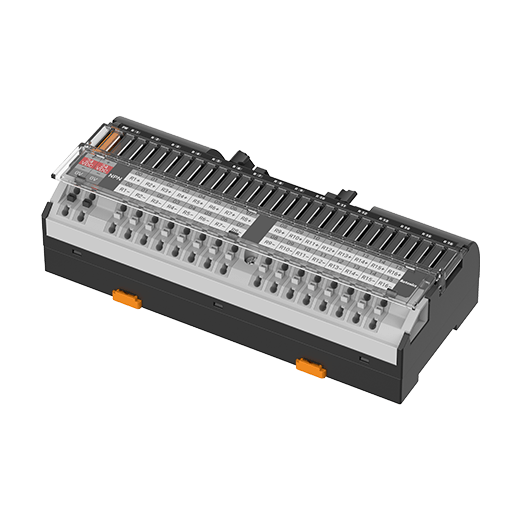

[16-Pin Type]

  • Solid state relay protection cover
  • Convenient solid state relay removal with removal lever
  • DIN rail mount and screw mount methods
  • Supported SSR: [Panasonic] AQZ202D



Korea Patent Registration 10-1624104

  • NPN/PNP

    Select NPN/PNP Input (4-Pin Type)

  • INDEPENDENT, COMMON

    Switch Between Independent and Common Output

  • Easy Wiring with Push-In Screwless Connection

  • Operation Indicator

  • Screw Mount

  • DIN Rail Mount

Input Selection (NPN, PNP) with Jumper Bar (4-Pin Type)

Switch between NPN and PNP input options by changing jumper bar location (left/right) for flexible usage in various applications.

  • ASL-1

Switch Between Independent and Common Output

Switch between independent and common output options by using jumper bars for flexible usage in various applications.

  • ASL-2
  • ASL-3

Easy wiring and stable connection with screwless push-in connection

The screwless push-in type connection is highly resistant to vibration and will not loosen or disconnect from extended use. The simple wiring procedure also saves time during installation.

  • ASL-4

Simple and Convenient Solid State Relay Replacement (4-Pin Type, 16-Pin Type)

Easily remove/replace solid state relays using with relay ejector clip

The solid state relays on the 1-pin models (ASL-L01⃞-⃞⃞) are integrated. The SSRs cannot be removed or replaced.

  • ASL-5
  • ASL-6

Operation Status Indicators

Blue LED indicators are available for each relay, offering convenient status check.

  • ASL-7
  • ASL-8

Flexible Mounting Methods

The terminal blocks support both DIN rail mount and screw mount methods (depending on model), for application in diverse environments.

  • ASL-9
  • ASL-10
