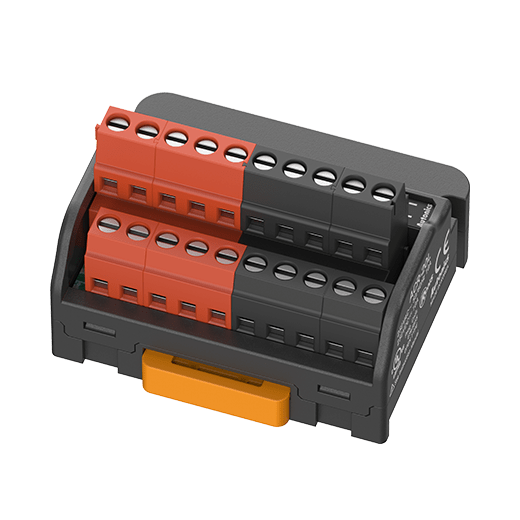

ACR Series

Description

Common Terminal Blocks (Rising Clamp Type)

The ACR series common terminal blocks utilize rising clamp type connection with built-in screws for easy, secure connection. The terminal blocks come equipped with common wiring on the PCB, removing the need for jumper bars. The compact design with 5 mm terminal pitch allows flexible installation in limited spaces.

Main features

  • Rising clamp type connection method offers easy and durable connection
  • Common wiring on PCB, jumper bar not required
  • Slim and compact design with 5 mm terminal pitch
  • DIN rail mount and screw mount installation
  • picto-01

    Rising Clamp Type

  • picto-02

    Slim Design

  • picto-03

    Screw Mount

  • picto-04

    DIN Rail Mount

  • Various Lineup

    The ACR series allows the flexibility for user’s needs and applications with various lineup.

    ACR-01
  • Simple and Secure Connection Method

    The ACR series feature rising clamp type connection, with built-in screws for simple and easy connection. This connection method offers high vibration resistance and secure and durable connection.

    ACR-02
  • Slim and Compact Design

    The slim and compact design with 5 mm terminal pitch allows space-saving installation.

    ACR-03
  • DIN Rail and Screw Mount Methods

    The ACR series support both DIN rail mount and screw mount methods, for easy application in diverse environment.

    ACR-04
