Description
General data
| Approval | CE UKCA cULus Listed TÃœV EAC (Eurasian) |
| Sensor principle | Transponder |
| Coding level to ISO 14119 | High |
| Transponder coding | fully coded |

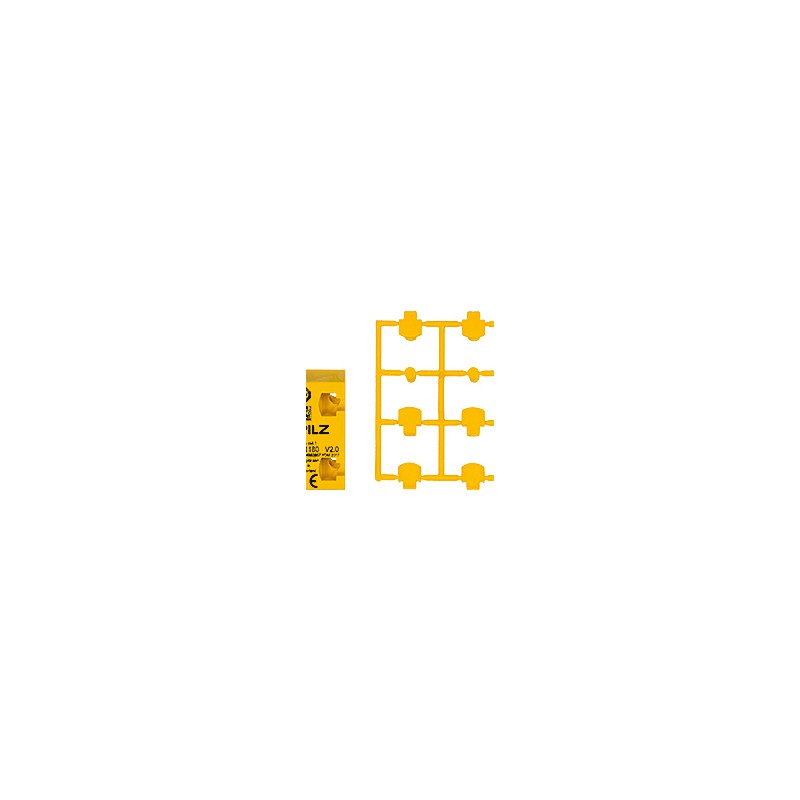

| unit type | Actuator |
Technical data
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 – 70  °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| EMC to standard … | EN 60947-5-3 |
| Vibration to standard … | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Protection type, housing |
Mechanical data
| Housing material upper part | PBT |
| Height dimension | 37 Â mm |
| Width dimension | 18 Â mm |
| Depth dimension | 18 Â mm |
| Net weight | 11 Â g |
| Gross weight | 15 Â g |
Transponder
| Operating frequency | 122 kHz – 128 kHz |
