Single-circuit power monitoring units: F-MPC04S series

Multifunctional meter integrates crucial functions for energy monitoring into this single unit. A model equipped with a leakage current meter is available.

Integrating measuring functions required for power monitoring in one unit

  • Reviews (0)
  • Features
  • Types and Ratings

Reviews

There are no reviews yet.


Be the first to review “Single-circuit power monitoring units: F-MPC04S series”

F-MPC04S features

  • Output functions for preventive maintenance selectable
    -Power alarm/current prealarm
    -kWh pulse output
    -Leakage current alarm, leakage current prealarm output (model with leakage current measuring function) only
  • Capable of measuring inrush current of welders
    -High-speed sampling and calculation of voltage and current
  • Compact design allows installation almost anywhere.
    -Space-saving construction simplifies installation.
    -Suited for monitoring individual equipment, section, and floor
  • Networking capability
    -RS-485 interface.
    -Can be connected to power distribution system same way as the power monitoring equipment F-MPC 60B, 30, 04 (UM04,UM02) series products

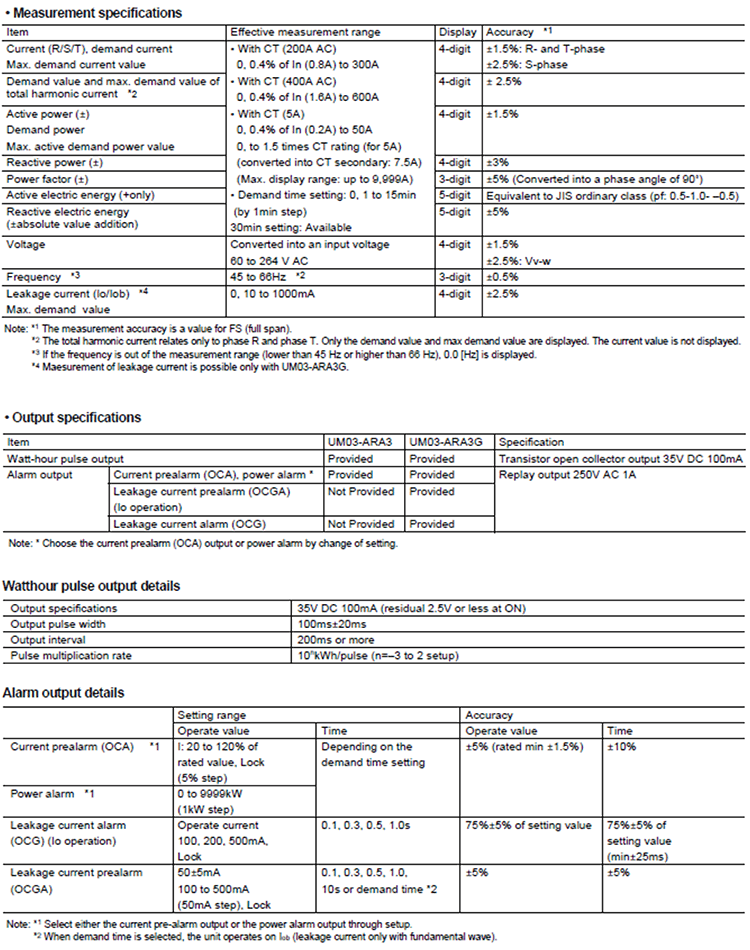

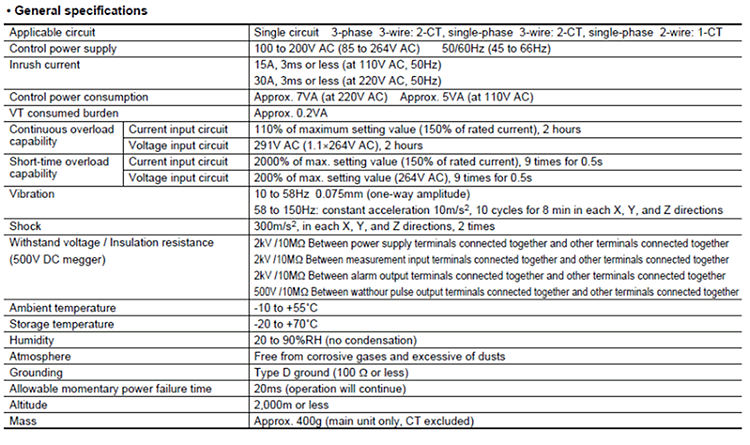

Specifications

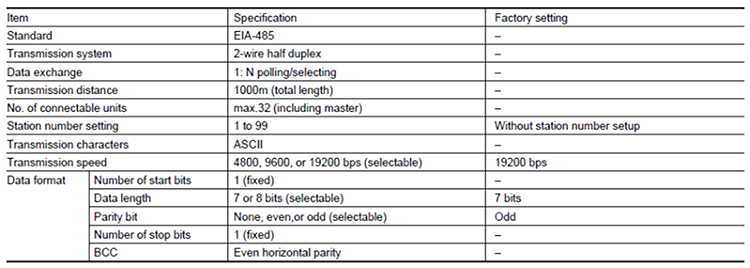

Communications specifications
