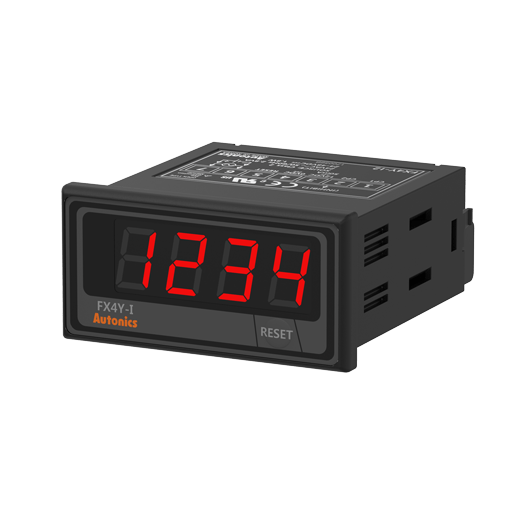

FXY Series

Digital Counter/Timer Indicators (Indicator Only)

The FXY series indicators are counter/timer units with counting speeds of 1 cps, 30 cps, 2 kcps, and 5 kcps and various time setting ranges. Count-up, count-down, and count up/down modes are available for accurate measurement and display of various system configurations. The FXY series is available in 4-digit and 6-digit models in standard DIN size W 72 x H 36 mm.

Main features

  • Counting speeds : 1cps/30cps/2kcps/5kcps
  • Switch between counter and timer operation using DIP switch
  • Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch
  • Set decimal point, hr/min/sec display with RESET key
  • Operation modes : count-up, count-down, count-up/down (counter)

Counter

20 input modes

Timer

  • Various time setting ranges
    • – 6-digit models : 0.01sec to 99999.9hr
    • – 4-digit models : 0.01sec to 9999hr
  • Power supply
    • – 100-240 VAC 50/60 Hz (AC type)
    • – 24 VAC 50/60 Hz, 24-48 VDC (AC/DC universal type)
