Display lights:DP24, 36, 40, 48 series

Improved safety achieved by excellent visibility and unified structure with quick terminal and live section cover.

High luminance with brilliant colors (LED illuminated products), pure white and blue products are available. Significant reduction of power consumption and product mass.
Fuji Electric’s unique quick terminal and live section cover in a single unit facilitate efficient wiring and improved safety.

Category:
  • Reviews (0)
  • Features
  • Types and Ratings

Reviews

There are no reviews yet.


Be the first to review “Display lights:DP24, 36, 40, 48 series”

High luminance and brilliant colors (LED illumination)

LED products adopt high luminance model, "PIKARI-KUN," with 7 colors available, including pure white.

Integrated quick terminals and live section covers

  • Fuji Electric's unique quick terminal (screw-in structure) prevents screw loss and facilitates efficient wiring.
  • Improved safety by integrating live section cover into the main unit.

[Quick terminal]

  1. Screws are held in an up-position, allowing you to connect a line quickly without unscrewing. This expedites wiring tasks.
  2. When unscrewing, the screw is held in an up-position. No chance of losing screws.

Easy replacement of LED units

Unit composition facilitates easy replacement and rearrangement of color parts.
(Transformer type 230V product or above, and flicker unit type are fitted with LED.)

Preventive circuit for error lighting included

The LED unit includes a circuit that prevents unintended lighting due to induction voltage or leak current.

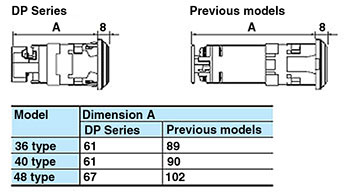

Minimized depth


  • Products with 110 V, 127 V and 220 V LED come in transformer-less model, significantly reducing the depth compared to products with transformer (2/3 of previous models in depth).
  • A short body (D: 50 mm) range is available for LED 24 V products without quick terminal structure (DP36, 40).

Contact ratings and specifications

Type DP24 DP36 DP40 DP48
Rated insulation voltage Full voltage-type AC/DC250V
Type R voltage divider, Type CR voltage divider - AC/DC250V
With transformer
(110, 127 and 220 V AC products)
AC250V 250 V AC
(600 V AC for T3N type)
AC600V
With transformer
(230 V AC products or above)
- AC600V
With flicker unit - AC/DC250V
Dielectric withstanding voltage
(between live section and ground)
Full voltage-type 2000 V AC, 1 minute
Type R voltage divider, Type CR voltage divider - 2000 V AC, 1 minute
With transformer
(110, 127 and 220 V AC products)
2000 V AC, 1 minute 2000 V AC, 1 minute
(2500 V AC, 1 minute for T3N type)
2500 V AC, 1 minute
With transformer
(230 V AC products or above)
- 2500 V AC, 1 minute
With flicker unit - 2000 V AC, 1 minute
Insulation resistance Between live section and ground: 100 MΩ or more
(by 500 V DC Megger)
Rated impulse withstand voltage (between live section and ground) Full voltage-type 4kV
Type R voltage divider, Type CR voltage divider - 4kV
With transformer
(110, 127 and 220 V AC products)
4kV 4 kV
(6 kV for T3N)
4kV
With transformer
(230 V AC products or above)
- 6kV
With flicker unit - 4kV
Ambient temperature -20 to +40℃, with no condensation or icing
Storage temperature -25 to +55℃ (or below +70℃ within 24 hours), with no condensation or icing
Relative humidity 45 to 85% RH, with no condensation or icing
Altitude Below 2000 m
Protective structure for indicator IP40 type (Closed type)
Rated frequency 50/60Hz
Pollution degree 3
Terminal screw tightening torque 0.8~1.0N・m

Cataloged item list

*Please refer to the catalog for maximum power consumption.
Maximum power consumption (DP24, DP36, DP40 and DP48): G13-3 in D&C11 catalog
