Circuit protectors: F series
A perfect choice for the protection of your electrical equipment, or control circuit for control panels of all kind.
A global model, Super slim body with full of functions.
FUJI’s compact and high-performance CP-F series circuit protectors incorporate FUJI’s advanced technology.
Their thin sizes make them ideal for use as AC/DC line switches in office andindustrial equipment.
UL (File No.E96846)
TÜV (IEC)(R9650230)
CCC (China GB)(2003010309067080)
- Reviews (0)
- Features
- Types and Ratings
Be the first to review “Circuit protectors: F series”
- Only 17.5mm wide — mounting spaceis reduced by 30% compared withconventional types.
- AC/DC common use
- Available with auxiliary switch and alarm switch
- Also available in types having inertia delay characteristics
- Trip-free mechanism
- IEC rail mounting

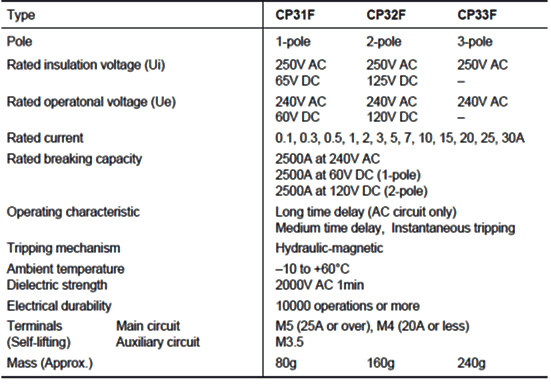

Ratings
Ratings of auxiliary and alarm switches
