Circuit protectors: D seriess
Ideal for control circuits of all types of control panels, or protection of your equipment.
The CP31 and CP32 have a similar functions to a molded case circuit breaker and they can be used for normal switching ON and OFFoperations while breaking bothoverload and short-circuit currents.
They are available in two time – current versions — an instantaneous and a time-delay version.
A suitable type should be selected to match the thermal and permissible current requirements.
These are recommended for sequential control circuits, motor control circuits, solenoid-operated valves, heaters and solid – state applications.
- Reviews (0)
- Features
- Types and Ratings
Be the first to review “Circuit protectors: D seriess”
- Excellent arc interruption. Since the arc extinguisher uses a loop blow-out system, the arc is rapidly extinguished.
- Highly visible handle indication. "ON" shows red and "OFF" or "TRIP" blue.
- When positioned at "ON", the operating handle is completely housed insidethe molded case and does not protrude. This helps to prevent erroneous operation.
- Trip-free mechanism
- Also available with auxiliary switch SPDT.
- Two time-current versions—instantaneous operation and a time-delay type. Select the model best suits your protection needs.
- CP31D and CP32D types are of front and rail dual mounting.

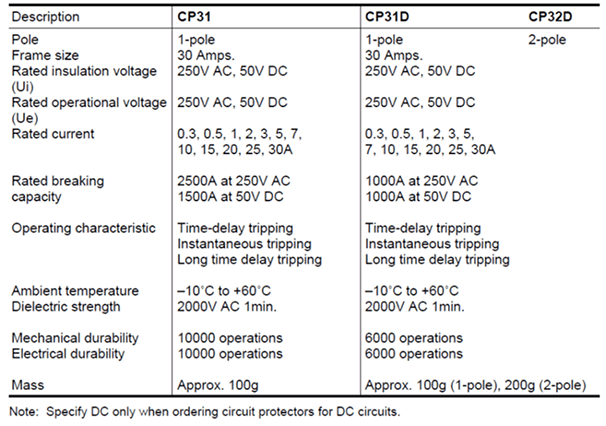

Specifications

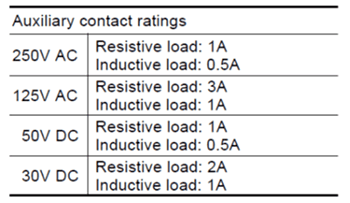

Auxiliary contact ratings
Related Products
-
Earth leakage protective relays: BRR,EL,RRD series
A relay performs contact output when detecting earth leakage. Both ZCT integrated model and ZCT separated model are available.
In the earth leakage relay the breaking mechanism is omitted from the ELCB, and the ZCT and earth leakage tripping device are integrated into a common body.
These relays are available in both instantaneous and time-delay versions.
Generally these relays are used in conjunction with MCCB’s, ACB’s and motor starters.UL1053
-
Circuit protectors: F series
A perfect choice for the protection of your electrical equipment, or control circuit for control panels of all kind.
A global model, Super slim body with full of functions.FUJI’s compact and high-performance CP-F series circuit protectors incorporate FUJI’s advanced technology.
Their thin sizes make them ideal for use as AC/DC line switches in office andindustrial equipment.UL (File No.E96846)
TÜV (IEC)(R9650230)
CCC (China GB)(2003010309067080) -
Miniature circuit breakers: BE1 series
This series of miniature circuit breaker is for the purpose of the protection of distribution equipment in the residential or similar facility, to protect against short circuit and overload damage.
BC63 Series : IEC 60898-1, GB 10963.1, CE, CCC
BC32 and BC50 Series : IEC 61009-1, GB 16917.1, CCC
BC32 Series Miniature Circuit Breaker (1P+N) : IEC 60898-1, GB 10963.1, CCC
BC32 Series Miniature Earth Leakage Circuit Breaker (1P+N) : IEC 61009-1, GB 16917.1, CCC -
Semiconductor protection series CS5F,CS8F type
Easy-handling semiconductor protection fuse for small outline dimensions and square shape.
The FUJI CS type is an extremely reliable fuse which has been specially developed to provide protection for silicon diodes and thyristors and is suitable for inverters using semiconductors or transformers-rectifiers.
FUJI Super Rapid Fuse is designed with a very small total I2t value which gives it a high speed interrupting action in the face of abnormal currents.
In addition, the arc voltage generated at the time of interruption has a low value so that faults will not influence related electric machinery and equipment.
This fuse can carry out theprotection of many types of circuits rating from the semiconductor overcurrents to destructive short-circuiting faults-i.e. when the semiconductor short or circuits fail the sound elements will be quickly isolated from the fault circuits. -
Semiconductor protection series CR2L(S),CR6L type
Semiconductor protection fuse. UL certified model is available.
The FUJI CR type is an extremely reliable fuse which has been specially developed to provide protection for silicon diodes and thyristors and is suitable for inverters using semiconductors or transformers-rectifiers.
FUJI Super Rapid Fuse is designed with a very small total I2t value which gives it a high speed interrupting action in the face of abnormal currents.
In addition, the arc voltage generated at the time of interruption has a low value so that faults will not influence related electric machinery and equipment.
This fuse can carry out theprotection of many types of circuits rating from the semiconductor overcurrents to destructive short-circuiting faults-i.e. when the semiconductor short or circuits fail the sound elements will be quickly isolated from the fault circuits.CR2L/UL (File No. E92312),
TÜV (150-350A)(Rep. No. E9450643E02)CR2LS/UL (File No. E92312),
CSA (File No. LO4000-4090),
TÜV (10-100A)(Rep. No. E9450643E02)CR6L/UL (File No. E92312),
TÜV (50-300A)(Rep. No. E9560543E02) -
Air circuit breakers: DH series
This is a new series alternative to DB. Compact in size than conventional type.
High performance and full protection function.The newly designed DH series air circuit breakers have excellent features as follows:
- The height and depth dimensions are identical in all sizes up to 3200AF
- Incresed accessibility from the front enhances easy of installation, operation and maintenance
- No extra arc space required, This will assist in minimizing switchboard height and costs
- Very fast interruption by double break system• Selective trip protective coordination functions
IEC60947-2
EN60947-2
AS3947-2
NEMA PUB No. SG3
ANSI C37.13
JIS C 8201-2-1
JEC 160 -
General-purpose molded: BX series
Full-featured & compact MCCB.
Ideal for protecting and measuring the power receiving and distribution circuit.- 3 sizes and 9 frames of MCCB can cover currents rated from 100 A to 1600 A.
- Compliant with international standards.
IEC60947-2, EN60947-2, JISC8201-2-1, NEMA AB1 - Improved breaking performance because Ics (rated service short-circuit breaking capacity) is the same as Icu (rated ultimate short-circuit breaking capacity).
- Control unit & display unit
– Abundant lineups are provided from basic type only with over current protection function to enhanced type with power quality control.
– The combination with various measuring functions, such as an ammeter, watthour meter, harmonic meter as well as with long time delay, short time delay, and instantaneous delay is possible.
– The parameter measurement & operation, data storage, log event recording, alarm output, and communication functions are possible. - Internal accessories of various rating are prepared.
(auxiliary/alarm switch, voltage/under voltage trip, etc.) - The compact external operating handle and electric control device are also prepared. Possible to change the setting of control unit while attaching a handle.
IEC60947-2
EN60947-2
JISC8201-2-1
NEMA AB1 -
Semiconductor protection series, Plug-in type(BLC)
Based on a plug typed current limiting fuse, this model reduces the total clearing I2t, as a high-speed current limiting fuse for the purpose of semiconductor protection.
The FUJI BLC type is an extremely reliable fuse which has been specially developed to provide protection for silicon diodes and thyristors and is suitable for inverters using semiconductors or transformers-rectifiers.
FUJI Super Rapid Fuse is designed with a very small total I2t value which gives it a high speed interrupting action in the face of abnormal currents. In addition, the arc voltage generated at the time of interruption has a low value so that faults will not influence related electric machinery and equipment.
This fuse can carry out theprotection of many types of circuits rating from the semiconductor overcurrents to destructive short-circuiting faults-i.e. when the semiconductor short or circuits fail the sound elements will be quickly isolated from the fault circuits -
General-purpose molded: BW0 seriess
Economy series MCCB from 32AF to 400AF
Focusing on assembly of easy wiring, maintenance check, reasonable price, and standardized distribution board design, BW0 series MCCBs are designed mainly for building construction market and secondary distribution market.
• IEC 60947-2
• TÜV (IEC/EN 60947-2)
• UL508 -
Solid-state type breaker: S series
FUJI solid-state type circuit breaker equipped with micro-computer controlled multi-functional electronic trip device with rated current switching function, adjustable function for tripping characteristics, and pre-alarm function. In response to enhanced electric installation, this circuit breaker provides high reliability and full range of protections.
IEC 60947-2, JIS C8201-1
