ABL Series

Description

Relay Terminal Blocks (Screwless Push-In Type)

The ABL series screwless relay terminal blocks offer easy wiring and stable connection with screwless push-in type connection. Users can switch between independent and common output options using jumper bars. The ABL series is available in 1-pin, 4-pin and 16-pin models.

Main features

※ New 1-pin type model has been added to the lineup (ABL-L01□-□□)

Common Features

  • Switch between independent and load common output with jumper bar
  • Easy wiring and stable connection with screwless push-in connection
  • Operation status indicator (blue LED)

1-Pin Type

  • Rated load voltage : 3A
  • Power common output using jumper bar
  • DIN rail mount method
  • Supported relays : [Fujitsu] NYP24W-K, [Panasonic] PA1a-24V

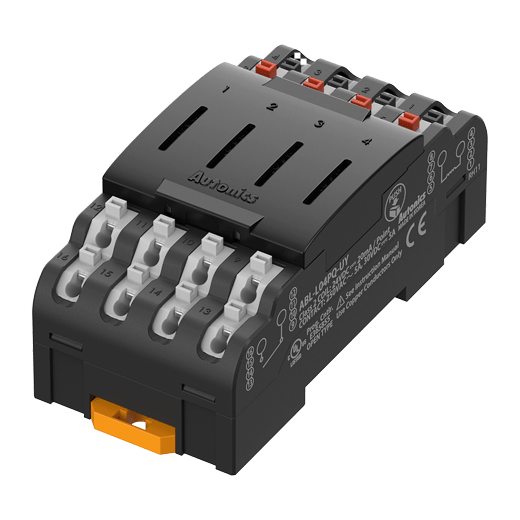

4-Pin Type

  • Rated load voltage : 5A
  • Switch between NPN and PNP input using jumper bar (patent) 1
  • Convenient relay removal with removal lever
  • Relay protection cover (patent) 2
  • DIN rail mount and screw mount methods
  • Supported relays : [Fujitsu] NYP24W-K, [Panasonic] PQ1a-24V, [OMRON] G6B-1174P-FD-US

16-Pin Type

  • Rated load voltage : 3A
  • Convenient relay removal with relay ejector clip
  • Relay protection cover
  • DIN rail mount method
  • Supported relays : [OMRON] G6B-1174P-FD-US



1) Korea Patent Registration 10-1508764, 2) Korea Patent Registration 10-1624104

  • ABL-picto-1

    NPN/PNPInput Selection(4-Pin Type)

  • ABL-picto-2

    Switch BetweenIndependent andCommon Output

  • ABL-picto-3

    Screwless Push-InConnection

  • ABL-picto-4

    OperationIndicator

  • ABL-picto-5

    Screw Mount

  • ABL-picto-6

    DIN Rail Mount

Input Selection (NPN, PNP) with Jumper Bar (4-Pin Type)

Switch between NPN and PNP input options by changing jumper bar location. Provides flexibility for usage in various applications.

  • ABL-1

Switch Between Independent and Common Output

Switch between independent and common output options by using jumper bars. Provides flexibility for usage in various applications

  • ABL-2
  • ABL-3

Simple and Convenient Relay Replacement

  • ABL-4

Easy wiring and stable connection with screwless push-in connection

The screwless push-in type connection is highly resistant to vibration and will not loosen or disconnect from extended use. The simple wiring procedure also saves time during installation.

  • ABL-5

Operation Status Indicators

Blue LED indicators are available for each relay, offering convenient status check.

  • ABL-6

Flexible Mounting Methods

The ABL series supports both DIN rail mount and screw mount methods, for application in diverse environments.

  • ABL-7
  • ABL-8
